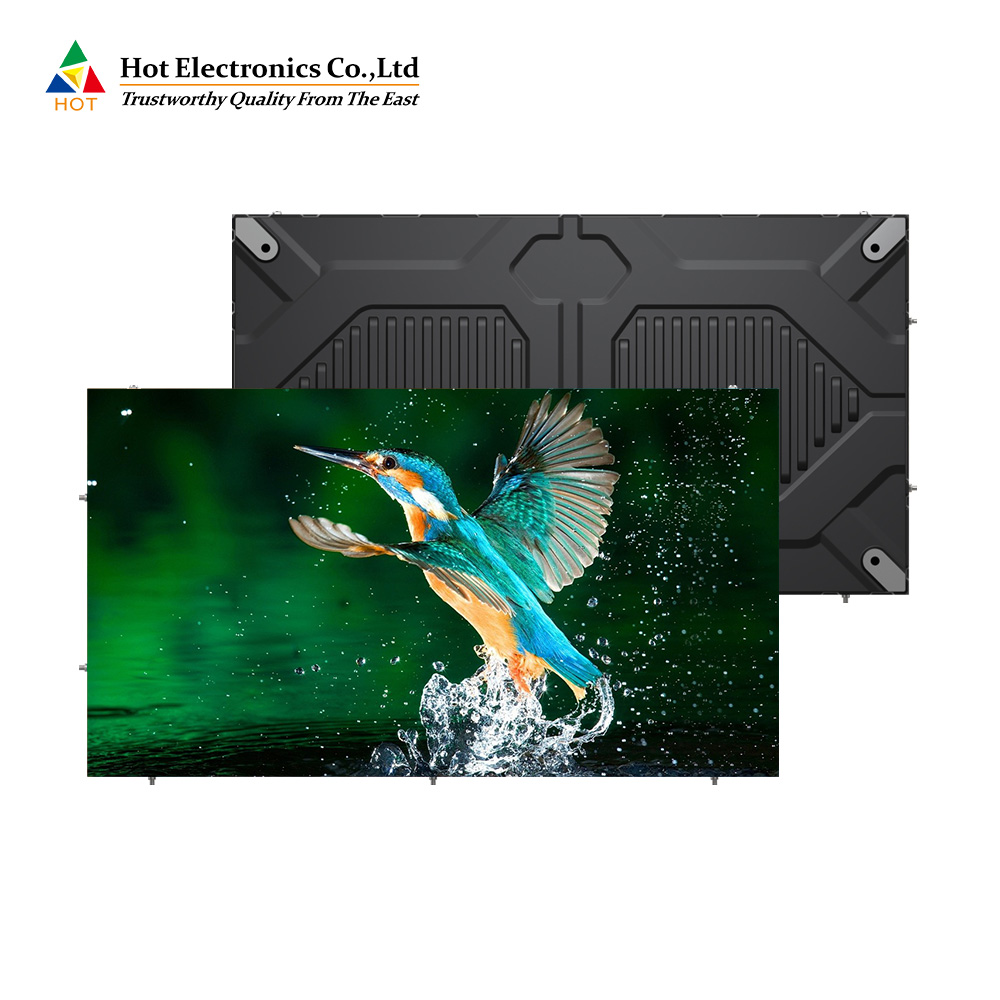

Indoor COB P0.4 P0.6 P0.7 P0.9 P1.2 P1.5 P1.8 Small Pixel Pitch LED Wall
Dimensions: 600x337.5x35mm.
Pixel Pitch: 0.4mm, 0.6mm, 0.7mm, 0.9735mm, 1.25mm, 1.5625mm, 1.875mm.
Applications: TV Station, Live Broadcasting, Video Conferencing System, CCTV Command Center, High-end Presentation ,AV Integrated System and so on
| Pixel Pitch | 1.875mm | 1.5625mm | 1.25mm | 0.9735mm |
| Pixel configuration | SMD1515 | SMD1212 | SMD1010 | SMD/COB |
| Module resolution | 160L X 90H | 192L X 108H | 240L X 135H | 320L X 180H |
| Pixel density(pixel/㎡) | 284 444 dots/㎡ | 409 600 dots/㎡ | 640 000 dots/㎡ | 1 137 777 dots/㎡ |
| Module size | 300mmL X 168.75mmH | 300mmL X 168.75mmH | 300mmL X 168.75mmH | 300mmL X 168.75mmH |
| Cabinet size | 600x337.5mm | 600x337.5mm | 600x337.5mm | 600x337.5mm |
| 23.622'' x 13.287'' | 23.622'' x 13.287'' | 23.622'' x 13.287'' | 23.622'' x 13.287'' | |
| Cabinet Resolution | 320L X 180H | 384L X 216H | 480L X 270H | 640L X 360H |
| Avg power consumption(w/㎡) | 300W | 300W | 300W | 300W |
| Max power consumption(w/㎡) | 600W | 600W | 600W | 600W |
| Cabinet material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Cabinet Weight | 6.5kg | 6.5kg | 6.5kg | 6.5kg |
| Viewing angle | 160° /160° | 160° /160° | 160° /160° | 160° /160° |
| Viewing distance | 2-80m | 1.5-60m | 1-50m | 1-50m |
| Refresh Rate | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz |
| Color processing | 18bit+ | 18bit+ | 18bit+ | 18bit+ |
| Working voltage | AC100-240V±10％，50-60Hz | AC100-240V±10％，50-60Hz | AC100-240V±10％，50-60Hz | AC100-240V±10％，50-60Hz |
| Brightness | ≥500cd | ≥500cd | ≥500cd | ≥500cd |
| Lifetime | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Working temperature | ﹣20℃～60℃ | ﹣20℃～60℃ | ﹣20℃～60℃ | ﹣20℃～60℃ |
| Power Supply | 5V/40A | 5V/40A | 5V/40A | 5V/40A |
| Working humidity | 60%～90%RH | 60%～90%RH | 60%～90%RH | 60%～90%RH |
| Control system | Novastar | Novastar | Novastar | Novastar |
You’d better buy all modules at a time for a led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
